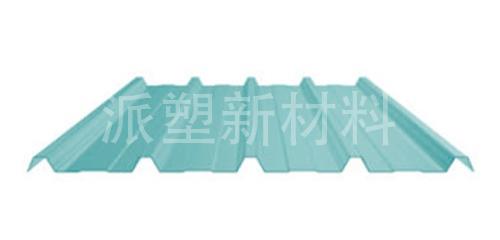

胶衣采光板
树脂成分:Ashland公司间苯——新戊二醇耐老化树脂
纤维增强:无碱无捻无胶泰山玻璃纤维
表面处理:表面贴覆Melinex301膜+Ashland抗老化胶衣(厚度约100um)
加强筋线:表面纵向均匀分布的抗拉加强筋线单
位重量:1800g/m22400g/m22750g/m23050g/m2
标称厚度:1.2mm 1.5mm 1.8mm2.0mm
使用温度:-60℃至+140℃
透光率:85±2%(透明)75%±2%(透明蓝)60%±2%(乳白)
抗紫外线率:99%
Resin Composition:Anti-aging isophthalic resin from Ashland Company
Fiber Reinforced:Alkali–free untwisted Mount–Tai Fiberglass
Surface Treatment:Melinex301 film + Ashland anti–aging gelcoat (about 0.1mm thick)
Reinforcement Wire:uniformly longitudinal wires
Unit Weight: 1800g/m 2 2400g /m2 2750g/ m2 3050g /m 2
Nominal Thickness:1.2mm 1.5mm 1.8mm 2.0mm-60 ℃ to+ 140 ℃
Operating Temperature:Light Transmittance:85 ± 2% (transparent) 75% ± 2% (transparent blue) 60% ± 2% (white)
UV Rate: 99%
